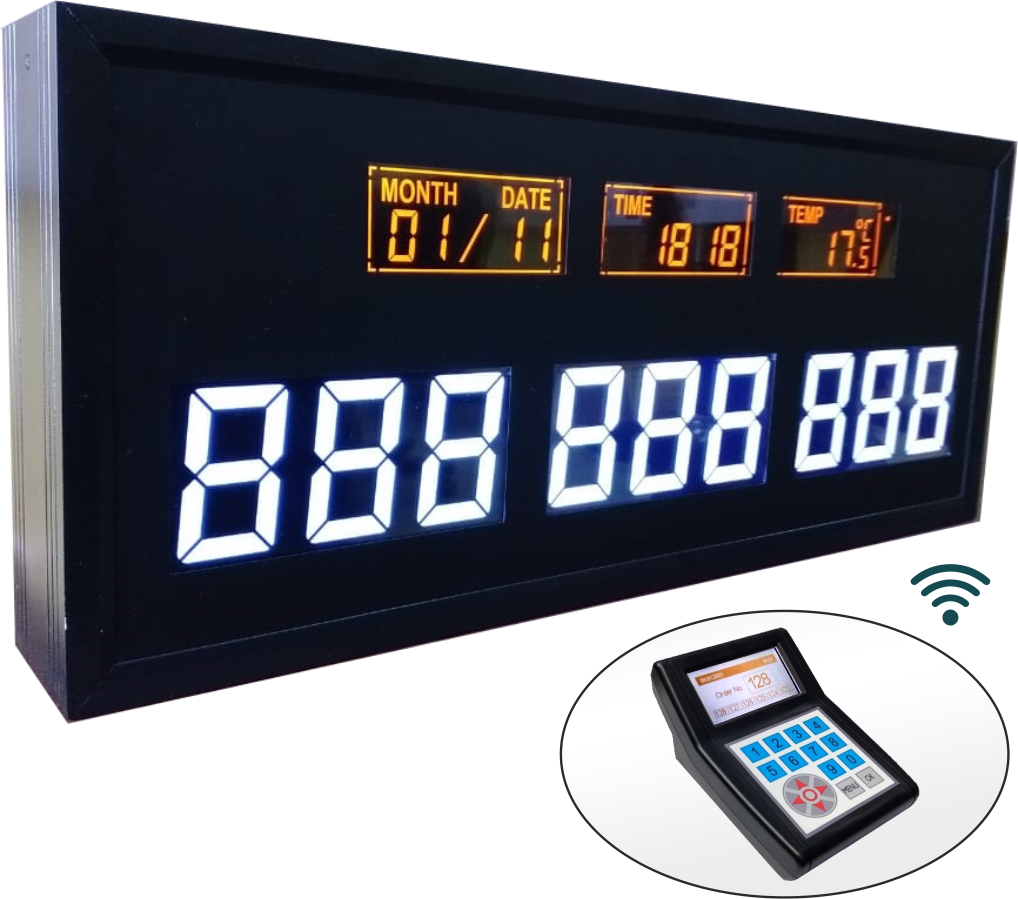

Adwel WiFi LED Token Display


LCD Token Number Display with human voice announcement is latest and built with high efficiency Microcontroller based technology. This system is very useful for bank counters, doctor clinics, hospital, opds, government offices, customer care centers, restaurants and many other such places where customers are served in a queue. All systems are manufactured with user-friendly features and are very easy to install. All systems are fully wireless with keypad & android phone so any ordinary person can install the system within minutes. We have the largest range of token display systems. We have provided this product successfully to many hospitals, restaurants, canteens etc. in India.



LCD Token / Order display System specially designed for que management and help to control crowd of customers. Keeping in mind the ever-evolving requirements of our clients, we are devoted towards manufacturing an optimum quality range of LCD Token / Order display board.


Features :

* Operated by Touch keypad, Android phone & Tablet.
* Easy to install android app from google play store.
* User can change user name (SSID) & password.
* Connectivity between display unit & operating unit through wireless/wired.
* Token number display with human voice announcement.
* User can select the announcement (Order/Token/Bell) with volume.
* User can set the date, month, year & time.
* The environmental temperature will be displayed on the temperature LCD display.
* Wireless range - RF (up to 1km), Wifi (up to 100 metre).
* You can control multiple display unit by one keypad through RF.
* Energy saving and safe & fast response.


Technical Specs :
Item   Smart Token Display
Connectivity   Wi-Fi / RF / RS-485
Operated by   Touch Keypad Unit / Android Phone / Tablet
LCD Character   Size 6"x3" (Red / White Colour)
LCD (Date/Time/Temp)   Size 4"x2" (Amber Colour)
LCD Life Time   50,000 Hours
Power Consumption   240 VAC @ 42.5ma Amp (10 Watt)
Keypad Enclouser   ABS (Black / White)
Keypad Mounting   Wall Mounting / Table Top
RTC Backup   Coin Cell Battery
Operating Temp   -10 C to 70 C
Display Enclouser   Aluminium profile
